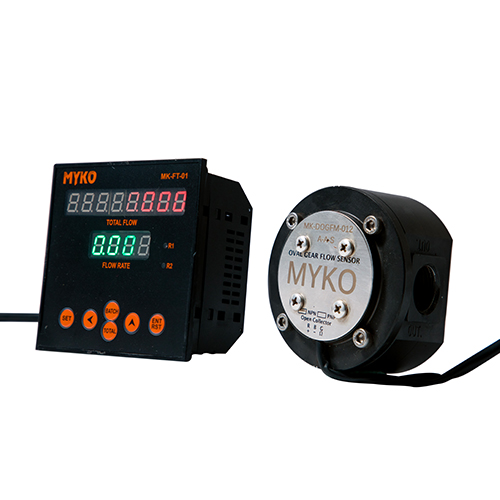

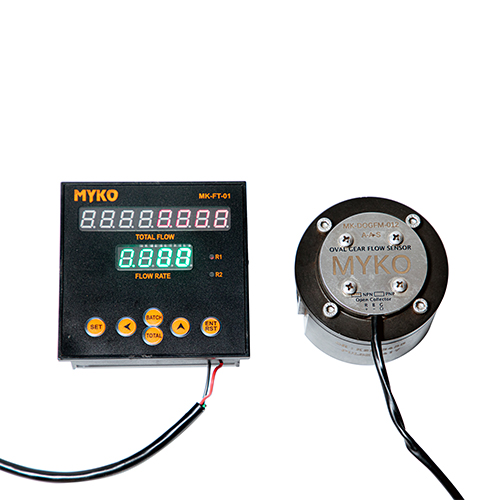

Digital Oil Flow Meter

Name: Digital Oil Flow Meter
Brand: MYKO ELECTRONICS PRIVATE LIMITED

Get a Price/Quote

MOQ : 1 Number

Digital Oil Flow Meter Specification

Connector
Cable Gland

Diameter
DN4 to DN80

Measurement Range
0.5 - 200 L/min

Language
English

Signal Type
Digital/Pulse

Model
MK-FT-01

Stability
0.2%

Process Connection
BSP/NPT Thread

Current Range
4-20mA Output

Velocity Range
0.1 - 10 m/s

Capacity
Model dependent

Connecting Type
Threaded or Flanged (Depending on Model)

Application Media
Oil

Mounting
Panel and Inline

Sensor Type
Oval Gear Flow Sensor

Input
24V DC

Length
Depends on model

Humidity %
85% RH

Connectivity Type
Wired

Temperature Range
-10C to 60C

Output
Pulse, 4-20mA

Operating Temperature
-10C to 60C

Housing Material
Aluminum/Stainless Steel

Pressure Range
Max. 16 bar

Equipment Type
Digital Oil Flow Meter

Storage Temperature
-20C to 70C

Sensitivity
High

Measuring Units
L/min, L/h, m3/h (Configurable)

Frequency
Pulse Frequency Output

Flow Rate
0.5 - 200 L/min

Protection
IP65

Response Time
<1s

Color
Black and Silver

Dimension (L*W*H)
Controller: 96 96 75 mm; Sensor: Varies by diameter

Resolution
0.01 L/min

Axis Type
Single Axis

Material
Aluminum Alloy, Stainless Steel

Power Supply
24 V DC / 230 V AC

Power Consumption
<10W

Accuracy
0.5% F.S.

Display Type
Analog And Digital

Range
0.5 - 200 L/min

Display Color
Red/Green 7-Segment LED

Data Logging
Optional

Controller Model
MK-FT-01

Power Cable Length
1.5 Meter

Calibration
Factory Calibrated

Alarm Function
Configurable High/Low Set Points

Sensor Model
MK-OGFM01

Digital Oil Flow Meter Trade Information

Minimum Order Quantity
1 Number

Delivery Time
2 Days

About Digital Oil Flow Meter

Oval gear positive displacement flow meters produced by Broil sensotek Industries, are innovative instruments designed to measure the flow of liquids accurately. Working principle behind these devices involves two gears that rotate within a chamber, trapping a fixed volume of fluid with each cycle. This consistent mechanism allows for highly accurate and precise flow measurement, which is essential across various industries, including oil and gas, food and beverage, and chemical processing.
