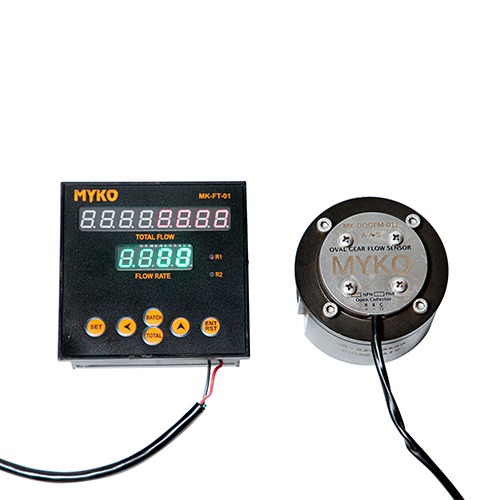

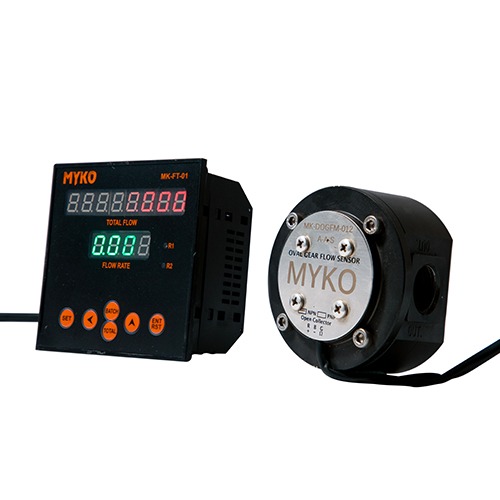

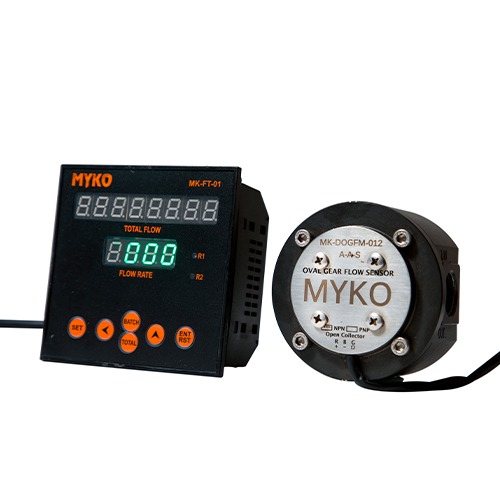

Positive Displacement Flow Sensor

Name: Positive Displacement Flow Sensor
Brand: MYKO ELECTRONICS PRIVATE LIMITED
Price: 4000.0 INR
Availability: InStock

Price 1.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Positive Displacement Flow Sensor Specification

Capacity
20 L/min max Liter/day

Pressure Range
0~1.6 MPa

Current Range
4~20 mA (analog output optional) Milliamperes (mA)

Application Media
Liquid (water, oils, alcohol, chemicals)

Protection
IP65

Resolution
0.01 L/min

Diameter
15 mm Millimeter (mm)

Temperature Range
-20C to +80C Celsius (oC)

Measurement Range
0.04~20 L/min

Sensor Type
Oval Gear Positive Displacement

Flow Rate
0.04 to 20 l/min

Equipment Type
Positive Displacement Flow Sensor

Connectivity Type
3-wire, NPN/PNP output

Humidity %
0~95% RH, non-condensing

Frequency
up to 1000 Hz pulse output Hertz (HZ)

Material
Stainless Steel / Aluminium Alloy

Power Supply
24 V DC

Power Consumption
< 1.5 W Watt (W)

Accuracy
0.5% of reading

Display Type
Digital LED

Range
0.04 to 20 l/min

Repeatability
0.03 L/min

Weight
Approx. 650g

Cable Length
2 meters (standard)

Output Signal
Pulse, analog (optional), digital

Response Time
< 0.2 sec

Media Viscosity
Max 1000 cP

Process Connection
G1/2

Mounting
Inline, fixed with threaded connections

Positive Displacement Flow Sensor Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

About Positive Displacement Flow Sensor

Buy the elite Positive Displacement Flow Sensor today and utilise our limited-time price cut offer for top-ranking precision and reliability. This splendid device boasts repeatability at 0.03 L/min, rapid response time (<0.2 sec), and a vast measurement range (0.0420 L/min). Equipped with a digital LED display, stainless steel or aluminium alloy build, and IP65 protection, it excels in monitoring water, oils, alcohol, and chemicals. Featuring easy inline mounting, flexible outputs, and industry-leading 0.5% accuracy, this sensor is the perfect addition for exporters, importers, and manufacturers across India.

Versatile Performance and Usage

The Positive Displacement Flow Sensor is engineered for diverse applications such as chemical processing, water treatment, and food-grade liquid measurement. It is straightforward to install using the G1/2" BSP threaded connections and provides seamless integration with advanced digital, analog, or pulse output systems. Additional features include a high-resolution display, robust construction, and adaptability for non-standard process connections on request. Its compact design, elite accuracy, and low power consumption make it ideal for demanding industrial operations.

Shipments, Certifications, and Payment Convenience

Our positive displacement flow sensors are available for prompt shipment from our main FOB port in India. Each unit is delivered with standard certifications and thorough inspection to ensure reliability. For seamless transactions, we offer flexible payment terms and quick quotation responses. Once payment is confirmed, handover and shipment proceed smoothly, keeping your projects on schedule. Our team supports exporters, importers, and service providers throughout the entire order process, equipping you with trusted solutions every step of the way.

FAQ's of Positive displacement flow sensor:

Q: How do I install the Positive Displacement Flow Sensor in my existing pipeline?

A: The sensor is designed for easy inline mounting using the standard G1/2" BSP threaded connections. Attach it securely at the designated pipeline section, connect the 2-meter cable, and follow the provided wiring instructions for the chosen output signal.

Q: What applications is this flow sensor suitable for?

A: It is ideal for monitoring the flow of liquids such as water, oils, alcohol, and chemicals in industries like chemical processing, food and beverage, water treatment, pharmaceuticals, and more.

Q: When can I expect shipment and delivery after placing an order?

A: Once your order and payment are confirmed, we process the shipment promptly from our FOB port in India. Typical handover times and delivery schedules are shared in your order quotation.

Q: What certifications come with the flow sensor?

A: Our sensors are supplied with industry-standard certifications confirming quality, accuracy, and safety. Specific certificates are provided with each shipment as required by the client or regulatory bodies.

Q: How does the output signal selection process work?

A: You can opt for pulse, analog (4-20mA), or digital output during ordering. Customisation is available to fit your application, and our team provides guidance to ensure optimal integration with your system.

Q: What benefits does the digital LED display offer?

A: The built-in digital LED display enables real-time monitoring and clear viewing of flow rates, enhancing operational safety and efficiency in process control environments.
