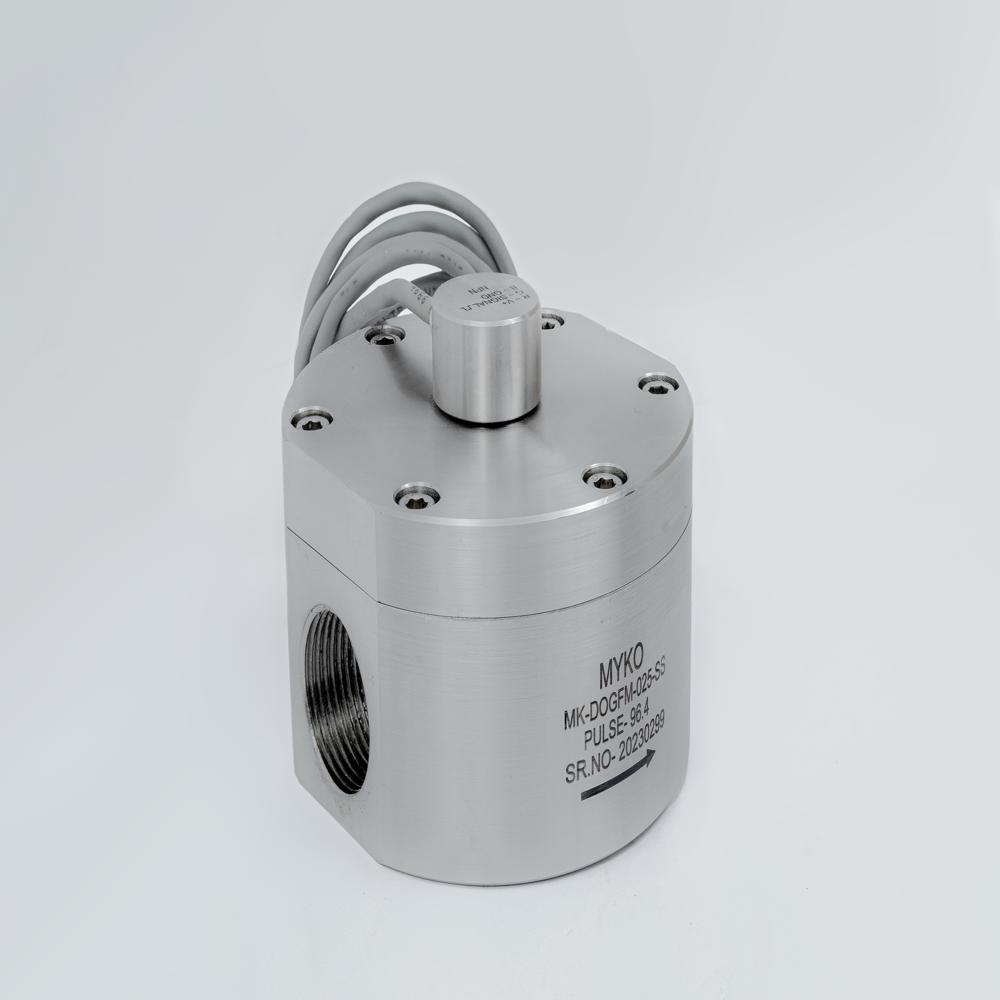

Food Grade Digital Flow Meter

Name: Food Grade Digital Flow Meter
Brand: MYKO ELECTRONICS PRIVATE LIMITED
Price: 4000.0 INR
Availability: InStock

Price 4000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Food Grade Digital Flow Meter Specification

Measurement Range
Customized as per process

Temperature Range
-20C to +80C

Humidity %
Up to 95% RH, Non-condensing

Resolution
0.001 L/s

Flow Rate
10 LPH to 100,000 LPH

Application Media
Water, Beverages, Milk, Juices (Food Grade Liquids)

Pressure Range
Max 16 bar

Equipment Type
Electronic Digital Flow Meter

Protection
IP65 / IP68 (Optional)

Connectivity Type
4-20mA, RS485 Modbus, Pulse Output, Relay Output

Diameter
DN15 to DN100 (15mm to 100mm)

Capacity
Up to 100,000 LPH

Frequency
0-1000 Hz (Pulse Output)

Sensor Type
Electromagnetic / Mass Flow (Food Grade)

Current Range
4-20mA output

Material
Stainless Steel 316L Wet Parts, Food Grade

Power Supply
220V AC, 50/60Hz

Power Consumption
Less than 15W

Accuracy
0.5% of reading

Display Type
Digital LCD Display

Range
0.3 to 10 m/s (velocity), 10 to 100,000 LPH (flow)

Data Logging
Optional Onboard Data Logger

Output Options
Analog (4-20mA), Digital (Pulse, RS485)

Compliance
FDA, CE, ISO 9001:2015

Electrode Material
SS316L or Hastelloy or Titanium (Optional)

Response Time
Less than 1 sec

Enclosure Material
Die-cast Aluminum or Polycarbonate

Lining Material
PTFE Food Grade

Min Conductivity
15 S/cm

Power Backup
Optional Battery Backup (4-8 hours)

Mounting Type
Flanged, Clamp, or Threaded

Cable Entry
Gland/PG

Ingress Protection
IP65/IP68

Installation
Inline

Food Grade Digital Flow Meter Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

About Food Grade Digital Flow Meter

Spotlight your operations with our first-class Food Grade Digital Flow Meter - an exceptional, cost-effective solution for accurate liquid measurement. Featuring pivotal electrode choices-SS316L, Hastelloy, or Titanium-and PTFE food grade lining, it upholds uncompromised hygiene. Satisfy FDA, CE, and ISO 9001:2015 standards while enjoying flexible output options (4-20mA, RS485, Pulse), optional power backup, and robust IP65/IP68 die-cast aluminum or polycarbonate enclosure. Sensationally quick with sub-one-second response time and unrivaled 0.5% accuracy, this meter is ideal for water, milk, juice, and beverage applications-delivering reliability and peace of mind at a reduced price cut.

Exceptional Benefits and Versatile Applications

This digital flow meter provides a winning combination of competitive advantages: rapid response time, exceptional durability, and supreme measurement precision. Its food grade construction ensures safe handling of beverages, milk, water, and juices across production lines, dairies, and processing industries. Simple inline installation and a user-friendly LCD display streamline readings and system integration. Select from flanged, clamp, or threaded mounting and utilize its advanced connectivity for seamless process monitoring and control.

Payment Terms and Global Exports Information

Our food grade digital flow meter is competitively priced. The asking price includes robust packing and careful dispatch to ensure pristine delivery. We prioritize export markets across Asia, Europe, the Middle East, and Africa, shipping from major Indian FOB ports. Flexible payment terms are available based on order size and client requirements. Our streamlined export process makes us a preferred supplier, exporter, and service provider across multiple global industries.

FAQ's of Food Grade Digital Flow Meter:

Q: How does the Food Grade Digital Flow Meter ensure accurate readings for food and beverage applications?

A: The meter uses precise electromagnetic or mass flow sensors with food grade wetted parts, offering 0.5% accuracy and rapid response below 1 second, ensuring reliability for water, milk, juice, and other beverage processes.

Q: What are the available installation options for this digital flow meter?

A: You can install the meter inline with flanged, clamp, or threaded connections, providing flexibility for various setups and simplifying integration into new or existing pipelines.

Q: Where can the Food Grade Digital Flow Meter be used effectively?

A: It is ideally suited for food processing plants, water treatment facilities, dairies, beverage manufacturing units, and similar industries that require hygienic, accurate liquid measurement under FDA-compliant conditions.

Q: What are the connectivity and data logging features of the meter?

A: This meter supports analog (4-20mA), digital (RS485 Modbus, Pulse, Relay Output) connectivity and is available with an optional onboard data logger for comprehensive tracking and process analysis.

Q: How does optional battery backup benefit continuous operations?

A: The optional battery backup (lasting 4-8 hours) enables uninterrupted flow measurement and data logging during power outages, supporting critical operations and maintaining data integrity.
