Single Use Data Logger With Display

Name: Single Use Data Logger With Display
Brand: MYKO ELECTRONICS PRIVATE LIMITED
Price: 4500.0 INR
Availability: InStock

Price 4500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Single Use Data Logger With Display Specification

Sensor Type
Internal Temperature Sensor

Mounting Type
Portable, Adhesive Backing

Interface
USB

Measurement Range
-30C to +70C

IP Rating
IP67

Sensitivity
High Sensitivity

Application
Pharmaceutical, Food Transport, Logistics

Signal Type
Digital

Wireless
No

Response Time
30 seconds

Features
LCD Display, Plug-and-Play, Pre-programmed Alarm, LED Status Indicator

Operating Temperature
-30C to +70C

Power Consumption
Low Power

Product Type
Single Use Data Logger With Display

Material
ABS Plastic

Input
Integrated Sensor

Output
Digital Display, USB Data Export

Function
Recording and Displaying Temperature Data

Usage
Single-use, disposable for cold chain monitoring

Accuracy
0.5C

Resolution
0.1C

Voltage
3V (Internal Non-replaceable Battery)

Weight
Approx. 20g

Data Export Format
PDF/CSV Automatic Report on Connection

Shelf Life
12 Months (before activation)

Compliance
CE, RoHS

Start Mode
Button Press Activation

Battery Life
Up to 90 Days (depending on use)

Display Type
Segment LCD Display

Recording Interval
10 minutes (default, configurable)

Alarm Function
Visual Alarm via Display and LED

Data Storage Capacity
Up to 16,000 readings

Stop Mode
Manual stop by button or automatic after memory full

Single Use Data Logger With Display Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Single Use Data Logger With Display

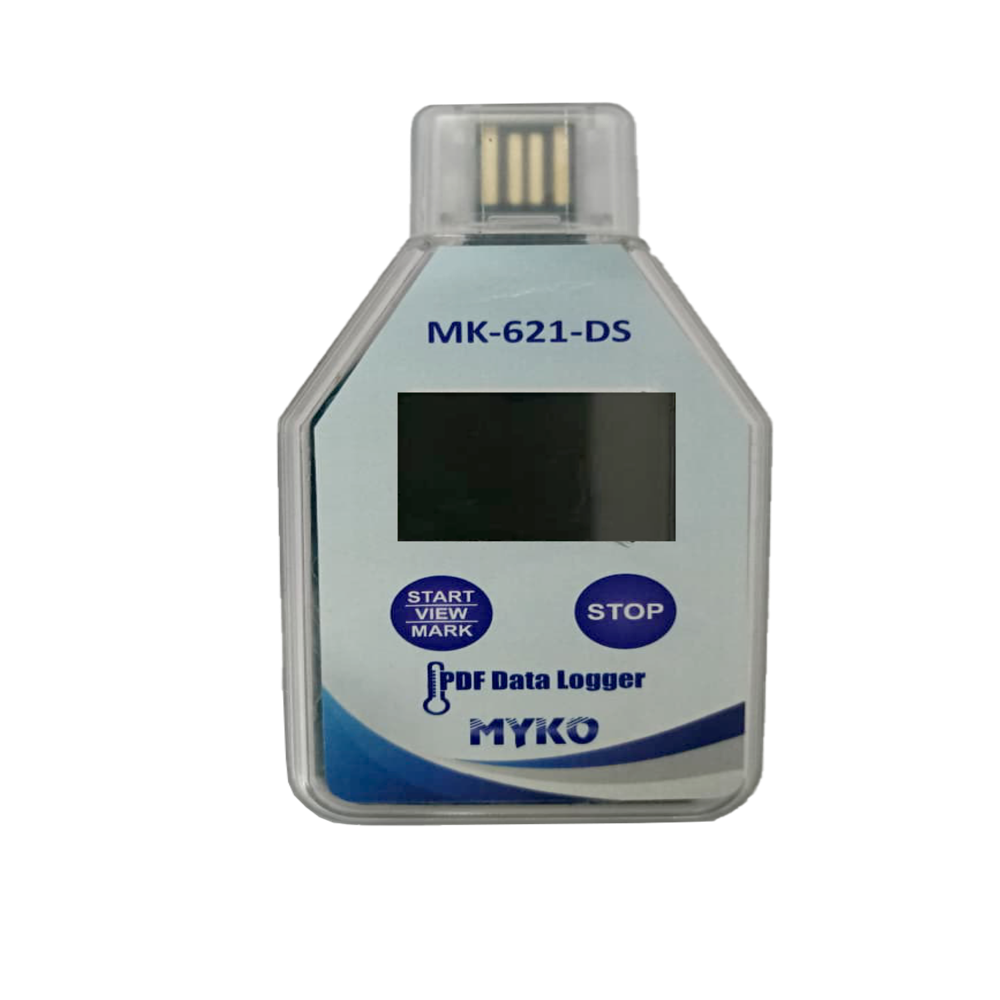

Disposable temperature data logger MK-621-DS is a simple portable device with LCD screen specially designed for cold chain. This product is mainly used to monitor and record the temperature data of food, medicine, chemical products and other products in the process of storage and transportation. It is widely used in all aspects of warehouse storage and logistics such as refrigerated containers, refrigerated vehicles, refrigerated distribution boxes, refrigerated containers, Cold storage, laboratory, etc. Data reading and parameter configuration can be realized through USB interface (which can be configured before use).

Simplified Cold Chain Monitoring

This single-use temperature data logger is designed for effortless cold chain assurance in industries like pharmaceuticals and food transport. Its plug-and-play operation and automatic PDF/CSV reporting streamline compliance and documentation, while the integrated sensor delivers highly accurate measurements. Suitable for exporters, importers, manufacturers, and service providers, the logger's robust ABS casing and IP67 rating provide durability in challenging shipping conditions.

User-Friendly Data Visualization

The data logger features a clear segment LCD and LED indicators, instantly displaying temperature data and alerting users to alarms. The device supports manual or automatic stop modes, making data retrieval and analysis more convenient. Fast USB connectivity offers automatic report generation, ensuring that quality and safety standards are always met.

FAQ's of Single Use Data Logger With Display:

Q: How do I activate and start recording with the Single Use Data Logger?

A: To start the logger, simply press the activation button. Once activated, it begins recording temperature data at the default 10-minute interval (configurable), and visual indicators on the display and LED inform you of its status.

Q: What is the process for stopping and retrieving recorded data from the logger?

A: You can stop recording either manually by pressing the designated button or automatically when the logger's memory is full. To retrieve data, plug the device into a USB port; it will automatically create a PDF or CSV report summarizing the recorded readings.

Q: When should I use the data logger, and how long does it last?

A: Use the logger for monitoring temperature-sensitive goods during transit or storage. It has a 12-month shelf life (before activation) and will operate for up to 90 days after activation, depending on recording intervals and conditions.

Q: Where can the data logger be effectively deployed?

A: The logger is ideal for use in pharmaceutical shipments, food transportation, logistics, and any setting where temperature control is critical. Its portable, adhesive-backed design allows flexible mounting within packages or containers.

Q: What are the benefits of using this single-use logger for cold chain applications?

A: This logger ensures precise monitoring with high sensitivity (0.1C resolution, 0.5C accuracy) and robust data security. Automatic PDF/CSV reporting simplifies compliance, the visual alarms provide instant feedback, and its disposable design prevents reuse errors, making it a practical choice for safe and reliable monitoring.

Q: How does the alarm function operate to alert users?

A: The logger uses a segment LCD and LED to provide instant visual alarms if the temperature exceeds pre-set thresholds. This immediate feedback helps ensure quick response to any deviations from required conditions, safeguarding your goods effectively.
