Minimum Order Quantity : 1000 Number
- Equipment Type
- Swirl Flow Meter
- Accuracy
- ÃÂÃÂÃÂñ0.5% of reading %
- Application Media
- Liquid, Gas, Steam
- Connectivity Type
- 4-20 mA, Pulse Output, RS485 MODBUS
- Current Range
- 4-20 mA Milliamperes (mA)
- Display Type
- Other, Digital LCD
- Flow Rate
- Wide Measuring Range
- Frequency
- 50/60 Hz Hertz (HZ)
- Humidity %
- Max 95% RH
- Material
- Stainless Steel
- Measurement Range
- Customized as per requirements
- Power Consumption
- Low
- Power Supply
- 24V DC
- Pressure Range
- Up to 4.0 MPa
- Protection
- IP65
- Range
- 0.5 ÃÂâÃÂÃÂÃÂà500 mÃÂÃÂÃÂó/h
- Resolution
- 0.001 mÃÂÃÂÃÂó/h
- Sensor Type
- Swirl Sensor
- Temperature Range
- -20ÃÂÃÂÃÂðC to +150ÃÂÃÂÃÂðC Celsius (oC)
- Process Connection
- Flange or Threaded
- Linearity
- ÃÂñ0.2% of reading
- Ambient Temperature
- -10ÃÂðC to 60ÃÂðC
- Output Signal
- 4-20 mA, Pulse, RS485
- Electronics Housing
- Aluminium Die-cast
- Repeatability
- ÃÂñ0.1%
- Mounting Type
- Flanged
- Response Time
- âÃÂä1s
- Zero Point Adjustment
- Available
- Power Connection
- 2-wire/4-wire
- Ingress Protection
- IP65 / IP67 (as per option)
- Installation Position
- Horizontal/Vertical
- Self-diagnostics
- Yes

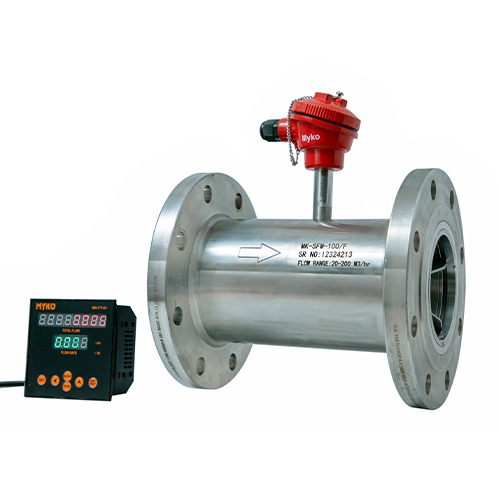

MYKO Swirl flow meter is the new type of flow meter with up to date technique. It integrates flow,
temperature and pressure to do volume compensation .
Main Characteristics : No remove parts, Anti-corrosion, stable performance, long working life, not need
special protection measurement after long working hours.Adopted 16 Bit computer chips , highly integrated,
small volume, good performance. The intelligent flow meter integrates sensor ,micro-processor,pressure and
temperature sensor into one part , built-in group to compact the structure , directly measure flow volume,
pressure ,temperature and able to carry out volume compensation. Adopted double testing technique to
improve the testing signal and to prevent the vibration of pipeline. l Adopted advanced anti-vibration technique
to restrain the vibration and disturbing signal from pressure fluctuation. Digital counter displays volume flow,
volume flow in standard state, totalized flow ,medium pressure and temperature ,etc .Transmitter outputs
frequency pulse ,4-20mA analog signal and RS485 port to connect with computer directly .The distance that
signal can be output reaches to 1.2Km . Warning output for variable parameters one of which can be selected
by users . Counter can be rotated from 360 angles. Battery operated or extra power supply
Precise Measurement TechnologyUtilizing advanced swirl sensor technology, the meter delivers repeatable and linear flow readings, with accuracy at 0.5% and resolution as fine as 0.001 m3/h. Its robust construction and high-flow capacity ensure reliable performance in challenging industrial conditions.
Flexible Installation and ConnectivityDesigned for horizontal or vertical mounting, it supports both flanged and threaded process connections. The electronics housing is made from durable aluminium die-cast and accommodates various output signals-4-20 mA, pulse, RS485-making integration into existing systems seamless.
Reliable and Durable DesignBoasting ingress protection up to IP67, the flow meter endures harsh environments and high humidity (95% RH). With low power consumption and a 24V DC supply, it offers efficient operation and self-diagnostics, suitable for continuous monitoring in demanding applications.
FAQ's of Swirl Flow Meter:
Q: How is the Swirl Flow Meter installed to ensure optimal performance?
A: The meter can be installed in either horizontal or vertical positions using flanged or threaded process connections. Ensure the pipe diameter matches your application (DN25-DN300) and maintain proper alignment during installation to guarantee accurate and repeatable measurements.
Q: What types of output signals does the Swirl Flow Meter provide?
A: The device supports multiple outputs, including 4-20 mA analog signals, pulse outputs, and digital RS485 MODBUS connectivity. This flexibility allows integration with various process control and monitoring systems.
Q: When should you use the Swirl Flow Meter for measuring flow?
A: Deploy the meter when precise, reliable measurement of liquids, gases, or steam is required, especially where high accuracy (0.5%) and repeatability (0.1%) are crucial, such as in industrial, utility, or infrastructure flow management.
Q: Where can the Swirl Flow Meter be applied given its protection ratings?
A: With IP65/IP67 ingress protection, robust aluminium housing, and a temperature range from -20C to +150C, it is suitable for indoor and outdoor installations, including humid and dust-prone environments across chemical, energy, and utility sectors.
Q: What is the process for adjusting the zero point on the Swirl Flow Meter?
A: Zero point adjustment is available through the meter's digital LCD interface. Follow the manufacturer's instructions to recalibrate periodically, ensuring measurement remains within its specified accuracy parameters.
Q: How does self-diagnostics benefit the user?
A: Self-diagnostic capabilities provide real-time status checks, alerting to irregularities or faults. This reduces maintenance downtime, ensures uninterrupted monitoring, and enhances the reliability of flow data.
Q: What advantages does the Swirl Flow Meter offer for high flow capacity applications?
A: The meter accommodates wide measurement ranges (0.5-500 m3/h) and high pressure (up to 4.0 MPa), making it optimal for processes requiring consistent and accurate monitoring across varying flow rates and large pipeline diameters.
