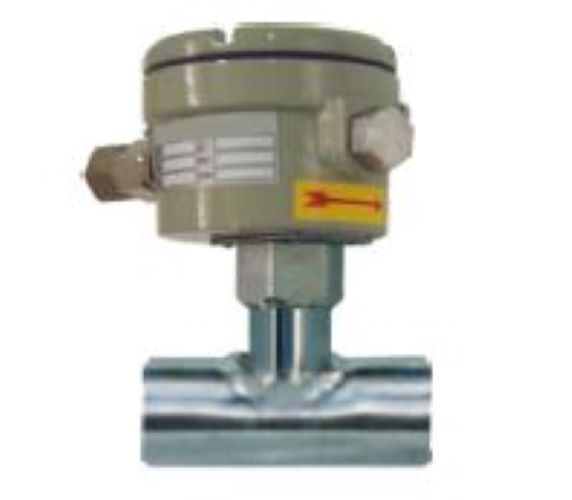

TEE TYPE FLOW SWITCH

Name: TEE TYPE FLOW SWITCH
Brand: MYKO ELECTRONICS PRIVATE LIMITED
Price: 4500.0 INR
Availability: InStock

Price 4500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TEE TYPE FLOW SWITCH Specification

Protection Level
IP65

Finish Type
Polished / Matt

Max. Current
5A

Circuit Type
SPDT

Mechanical Life
>10 million operations

Rated Voltage
250V AC / 30V DC

Number of Module
Single

Automation Grade
Automatic

Temperature Range
0C ~ 80C

Response Time
<0.2 sec

Product Type
Tee Type Flow Switch

Material
SS 316

Insulation Resistance
Min. 100M at 500V DC

Contact Resistance
Max. 50m (Initial)

Max. Voltage
24 / 230 V AC Volt (V)

Operating Temperature
0C to 80C

Warranty
1 Year

Stoke
3 mm

Size
1 inch (Standard), Other sizes optional

Color
Silver/Gold (depends on material)

Weight
Approx. 350 g

Mounting Type
Inline - Tee Mounting

Current Rating
0.5A to 5A

No Of Poles
Single Pole

Electrical Connection
3-core cable, 1m length

Flow Range
1~30 L/min (standard), other on request

Pressure Rating
Up to 16 bar

Switch Type
Reed Switch (Magnetically actuated)

Process Connection
Threaded Tee

Connection Type
BSP / NPT, Female

Ambient Temperature
-10C to 60C

Switching Differential
Approx. 0.5 L/min

Enclosure Material
Die-cast Brass/Stainless Steel

TEE TYPE FLOW SWITCH Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Days

About TEE TYPE FLOW SWITCH

Flow Switch-SS 304WeatherProofModel : MK-FS-WP-ADFType : Paddle OperatedMedia : Water/OilProcess Connection : 1BSP(M)Enclosure(Housing):Enclosure : AL ,IP67Paddle : SS 316Bellows : SS 316 LMicro switch : 5 Amp, 230 V ACType of Switch : Micro TypeMaterial of Construction : SS 304Line

Reliable Flow Detection for Industrial Use

Engineered for precision and long-term performance, the Tee Type Flow Switch is ideal for monitoring and controlling liquid flow in various industrial processes. Its high mechanical life (>10 million operations) ensures lasting reliability, while the rapid response time (<0.2 sec) aids in prompt system adjustments. The enclosure, available in polished or matt finishes of stainless steel or brass, provides both durability and aesthetic flexibility.

Versatile Mounting and Connection Options

This flow switch supports BSP or NPT female connections and features inline tee mounting for straightforward installation. The 1-inch threaded tee design suits standard pipelines, with other sizes available upon request. Its compact build (approx. 350g) and versatile material and finish options make it an excellent choice for manufacturers, traders, and suppliers in industrial sectors.

FAQ's of TEE TYPE FLOW SWITCH:

Q: How is the Tee Type Flow Switch installed in a pipeline?

A: The Tee Type Flow Switch is designed for inline installation using its threaded tee mounting, compatible with BSP or NPT female connections. Simply select the appropriate thread type and size (standard is 1 inch) and connect the switch at a suitable point in your pipeline to ensure optimal flow detection.

Q: What processes and applications are suitable for this flow switch?

A: This switch is ideal for industrial processes requiring precise flow monitoring, such as water treatment, cooling systems, chemical processing, and HVAC applications. Its stainless steel or die-cast brass enclosure provides corrosion resistance, making it suitable for harsh environments.

Q: What is the benefit of the magnetically actuated reed switch?

A: The magnetically actuated reed switch ensures dependable and fast flow detection with a switching differential of approximately 0.5 L/min. This design reduces wear and extends mechanical life, providing over 10 million operations for consistent, maintenance-free use.

Q: When should the Tee Type Flow Switch be used according to its pressure and temperature ratings?

A: Use this flow switch within the specified pressure rating of up to 16 bar and the temperature range of -10C to 60C ambient and 0C to 80C operating temperature. Regular operation within these parameters ensures optimal accuracy and longevity.

Q: What electrical connections and circuit options are provided?

A: The flow switch comes with a 3-core, 1-meter cable for electrical connection, supporting rated voltages up to 250V AC or 30V DC and current ratings from 0.5A to 5A. It features an SPDT (Single Pole Double Throw) circuit configuration for versatile automation integration.

Q: Where can export-quality Tee Type Flow Switches be sourced?

A: As both an exporter and supplier based in India, this flow switch is available from manufacturers, traders, and service providers within the region, ensuring reliable supply for both domestic and international requirements.
