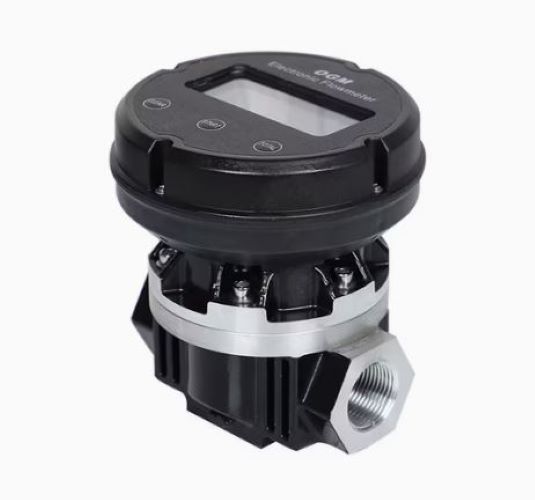

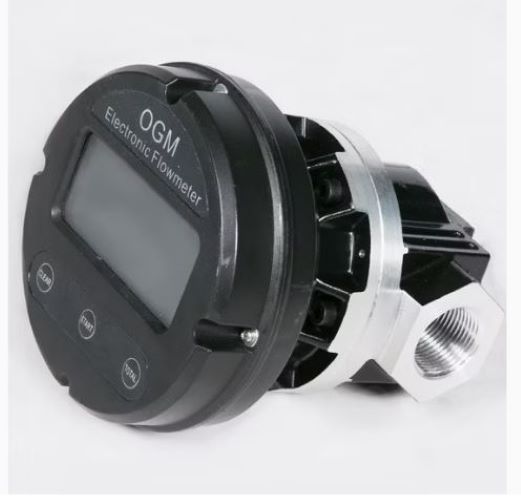

Send InquiryBattery Operated Oval Gear Flow meter
MOQ : 1 Piece
Battery Operated Oval Gear Flow meter Specification
- Humidity %
- 95%
- Model
- Battery Operated Oval Gear Flow Meter
- Process Connection
- Threaded/Flanged (depends on model)
- Connector
- Threaded (BSP/NPT)
- Pressure Range
- 0~1.0 MPa
- Measurement Range
- 10-120 L/min
- Dimension (L*W*H)
- Approx. 120*100*100 mm
- Flow Rate
- 10-120 L/min
- Operating Temperature
- -20C to 60C
- Stability
- Long-Term Calibration Stability
- Color
- Black/Silver
- Mounting
- In-line
- Measuring Units
- Liters, Gallons, Pints, Quarts
- Sensitivity
- High Sensitivity to Low Flow Rates
- Diameter
- 1 inch (Optional sizes available)
- Application Media
- Oil, Diesel, Fuel, Non-corrosive liquids
- Sensor Type
- Oval Gear
- Resolution
- 0.01 L
- Input
- Fluid Flow
- Output
- Pulse Output (Optional)
- Protection
- IP65
- Housing Material
- Engineering Plastic & Aluminum Alloy
- Connectivity Type
- Standalone/Battery Operated
- Storage Temperature
- -30C to 70C
- Velocity Range
- 0.5~6 m/s (Typical)
- Length
- Depends on Model
- Response Time
- Instantaneous
- Load Capacity
- Depends on Model/Line Size
- Language
- Universal Symbols, No Language Dependency
- Signal Type
- Digital
- Cut Size
- 1 inch
- Capacity
- Varies by Model
- Temperature Range
- -10C to +60C
- Equipment Type
- Oval Gear Flow Meter
- Connecting Type
- Threaded Connection
- Material
- Aluminum Alloy; Engineering Plastic
- Power Supply
- 3V Battery Operated
- Power Consumption
- Low
- Accuracy
- 0.5% F.S.
- Display Type
- LCD Digital Display
- Range
- 10-120 L/min
- Battery Life
- 2 Years (typical)
- Environment
- Industrial use, Outdoor compatible
- Data Logging
- Manual Resettable Totalizer
- Display Digits
- 5 Digits + 2 Decimal Places
- Material Grade
- Industrial Grade
- Viscosity Range
- 2-2000 mPas
- Weight
- Approx. 600 grams
- Compliance
- CE Certified
- Reset Function
- Yes, on-screen reset
- Repeatability
- 0.03%
Battery Operated Oval Gear Flow meter Trade Information
- Minimum Order Quantity
- 1 Piece
- Supply Ability
- 100 Pieces Per Month
- Delivery Time
- 7 Days
